World class quality & reliability

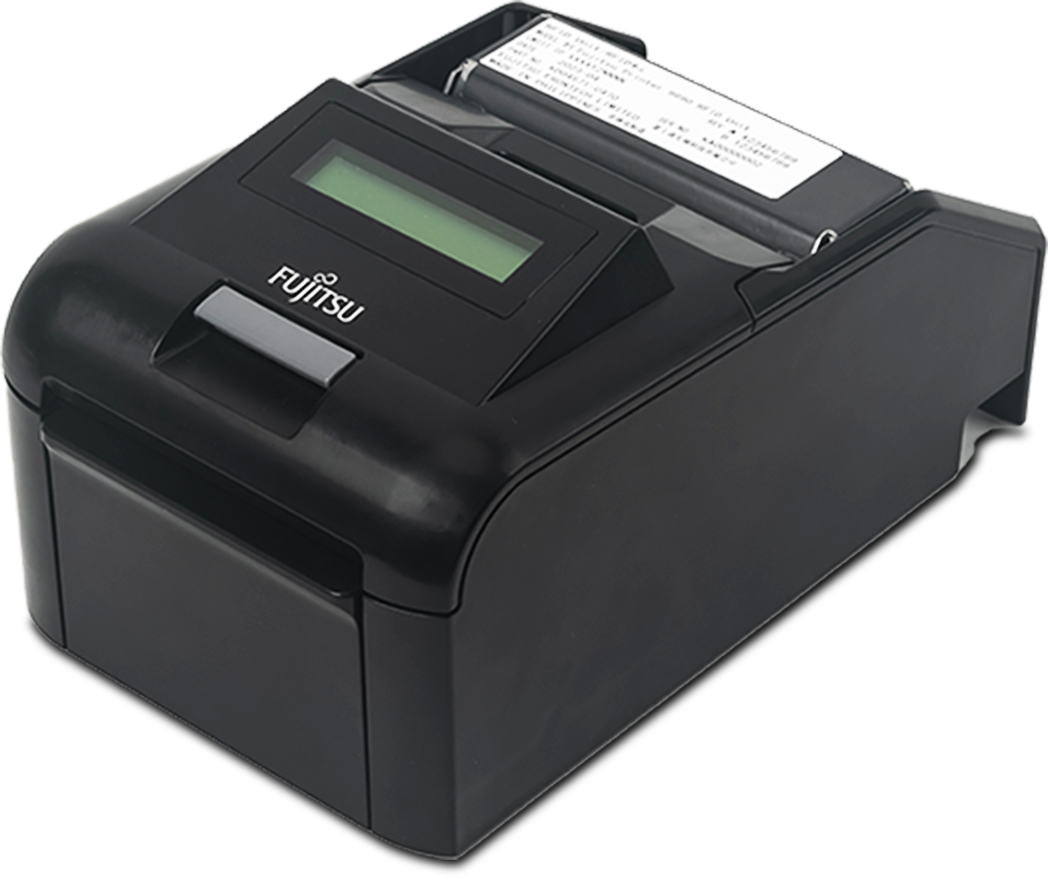

Fujitsu Printer 9890C
Genenal purpose printer for boarding pass, receipt paper, baggage tag and specialized paper
Airline boarding pass and baggage tag printer for check-in counters
This printer is for check-in counters at airports. It is equipped with the same module as F9890S for KIOSK and self-bag drop, and improves operational efficiency by sharing software and consumable parts. This new printer supports various paper media used at airports and airlines around the world, such as liner-less baggage tags (*1) and RFID baggage tags, which are becoming mainstream now.
This can be done only by adding or replacing with optional parts without replacing the whole printer.
Features
World class performance, reliability
-
Fujitsu’s mechanical components expertise and long history for airline printers has been implemented and it makes high quality, performance.
- A printer with a new device that reflects the voice of customers in the aviation industry.

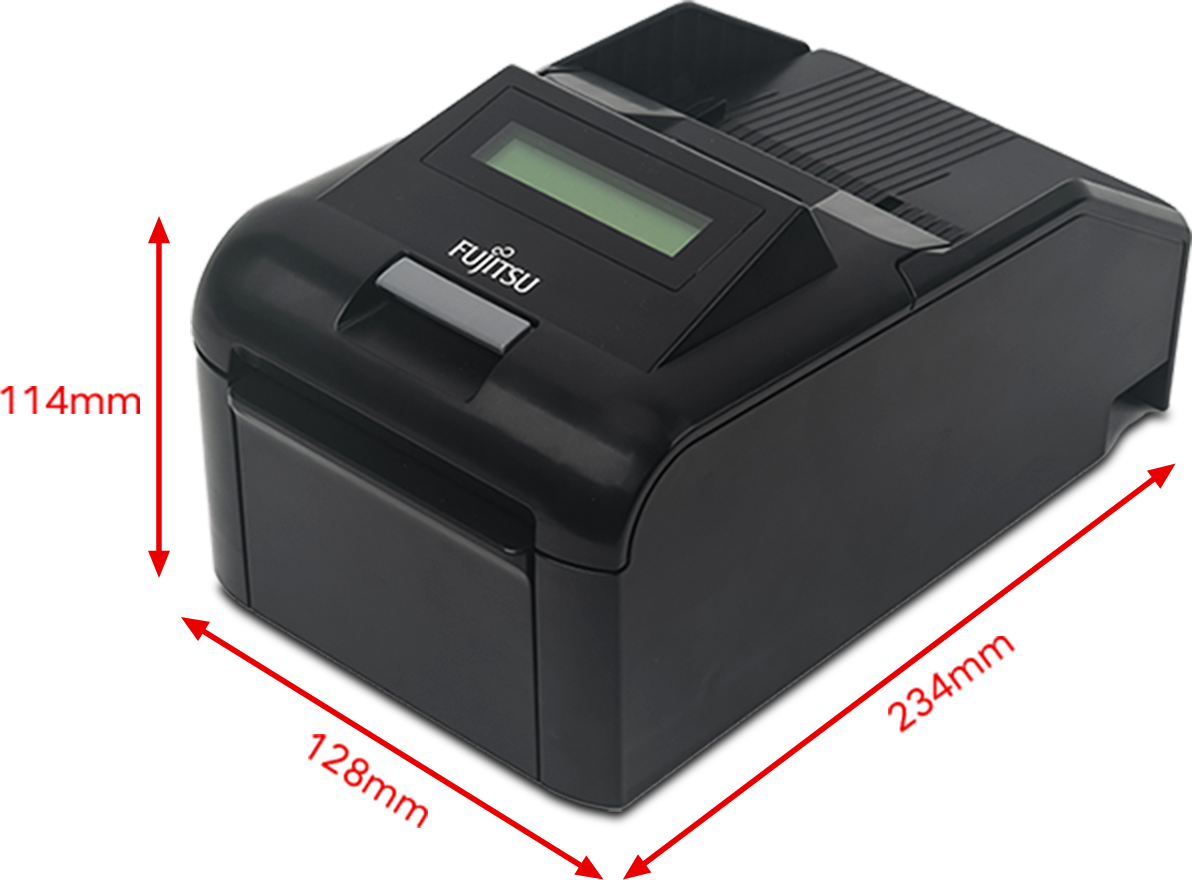

Compact design to be installed at counters
-
F9890C(with LCD) :
W128-D234-H114(mm) / 2.1kg [W5-D9.2-H4.5(inch) / 4.6lb]
-
F9890C（with LCD）:
W128-D234-H101(mm) / 2.0kg [W5-D9.2-H4.0(inch) / 4.4lb]
-
F9890C（with LCD）+ Roll Stand :
W142.5-D445-H232.5(mm) / 3.9Kg [W5.6-D17.5-H9.2(inch) / 8.6lb]
-
F9890C（with LCD）+ Tray + Stacker :
W128-D477-H154(mm) / 2.5kg [W5-D18.8-H6.1(inch) / 5.5lb]
Expandability for various baggage tags
It is possible to handle special baggage tags, for which demand is expected more in the future, simply by adding or replacing optional parts. (RFID, Liner-less) The total cost can be reduced when used for many years than other printers.
Fully equipped standard unit
Cutter Unit and Cut & Clamp functions are standard equipment.
This enables to use variety of printing media from the beginning.
Specifications
- F9890C(with LCD)：
W128-D234-H114(mm) / 2.1kg [W5-D9.2-H4.5(inch)/4.6lb] - F9890C(without LCD)：
W128-D234-H101(mm) / 2.0kg [W5-D9.2-H4.0(inch)/4.4lb] - F9890C(with LCD) + Roll Stand：
W142.5-D445-H232.5(mm) / 3.9Kg [W5.6-D17.5-H9.2(inch)/8.6lb] - F9890C(with LCD) + Tray + Stacker：
W128-D477-H154(mm) / 2.5kg[W5-D18.8-H6.1(inch)/5.5lb]
(Mean Time Between Failure)
500,000 Hours (Electric Board)
USB 2.0 (F9890C has the virtual com for RS232C.)
24Vdc
- Maximum power consumption：
150VA maximum at operation
5.0VA maximum at standby - At operation：
5 to 35°C / 30 to 85%RH Alarm buzzer, 0 - 5,000m altitude - At storage：
-5 to 50°C / 5 to 95%RH
- The computer tool for diagnostic and test function
- Statistics data for transactions by log files
- Dot detection
- Direct Thermal Resolution：203dpi
- Printer Line width：80mm
- Selectable Printer Speed：5,6,7,8,9,10 inch/sec
- Print Density：Selectable
Conformto the ITPS(*2) standard
- 1D：Interleaved 2 of 5 / Industrial 2 of 5 / Code 39 & Code 128 / EAN 13
- 2D：PDF417 / Aztec / Data Matrix / QR
ITPS 2019 compatible
*We need to discuss some items in advance
ITPS(*2) standard
- Certified by：
ARINC vMUSE/ ARINC iMUSE / ARINC cMUSE are compatible
*Updated sequentially
*Formerly known as AEA technical specification"
UL / cUL / CE / BSMI / RCM
*Updated sequentially

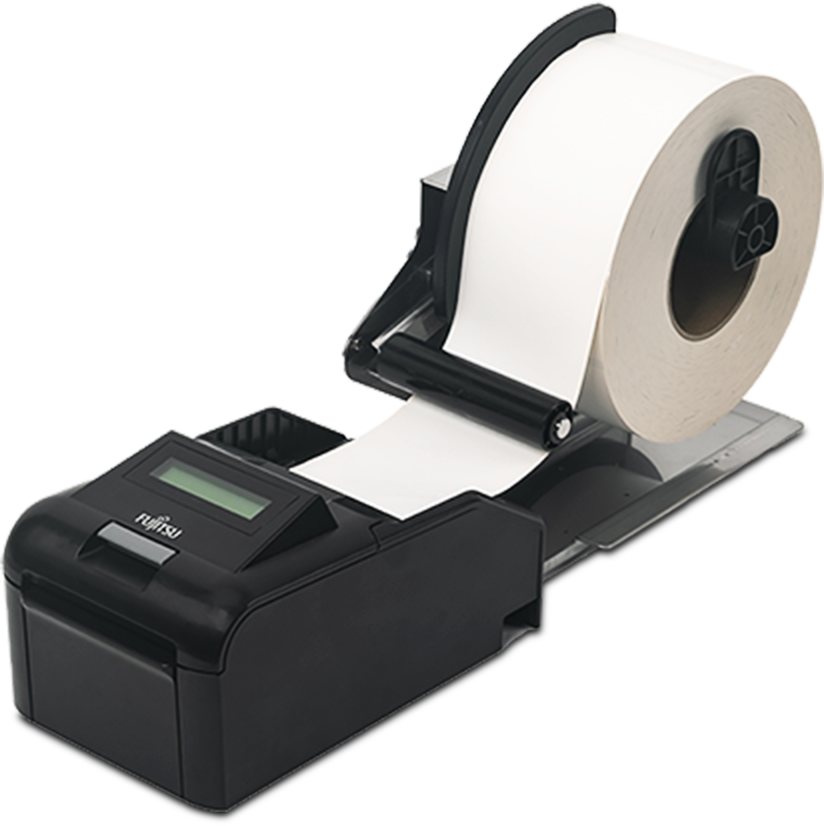

RFID unit / Roll Stand / Tray / Stacker
(*1) liner-less baggage tags : Baggage tag without paper-liner.
(*2) ITPS : The IATA Technical Peripheral Specifications formerly known as AEA Technical specification.
* Product specifications are subject to change without notice. All data is based on internal testing, and results may vary with the conditions.
* All brand names and product names are trademarks or registered trademarks of their respective companies.
