Scalable Cash Recycler
SRU
Bill Recycling Unit with High-Speed, High-Capacity, and Flexibility
SRU can satisfy a variety of requirements with a flexible cassette configurations and coping many kinds of denominations.
It also can process banknotes at high speed and store a large amount of banknotes.

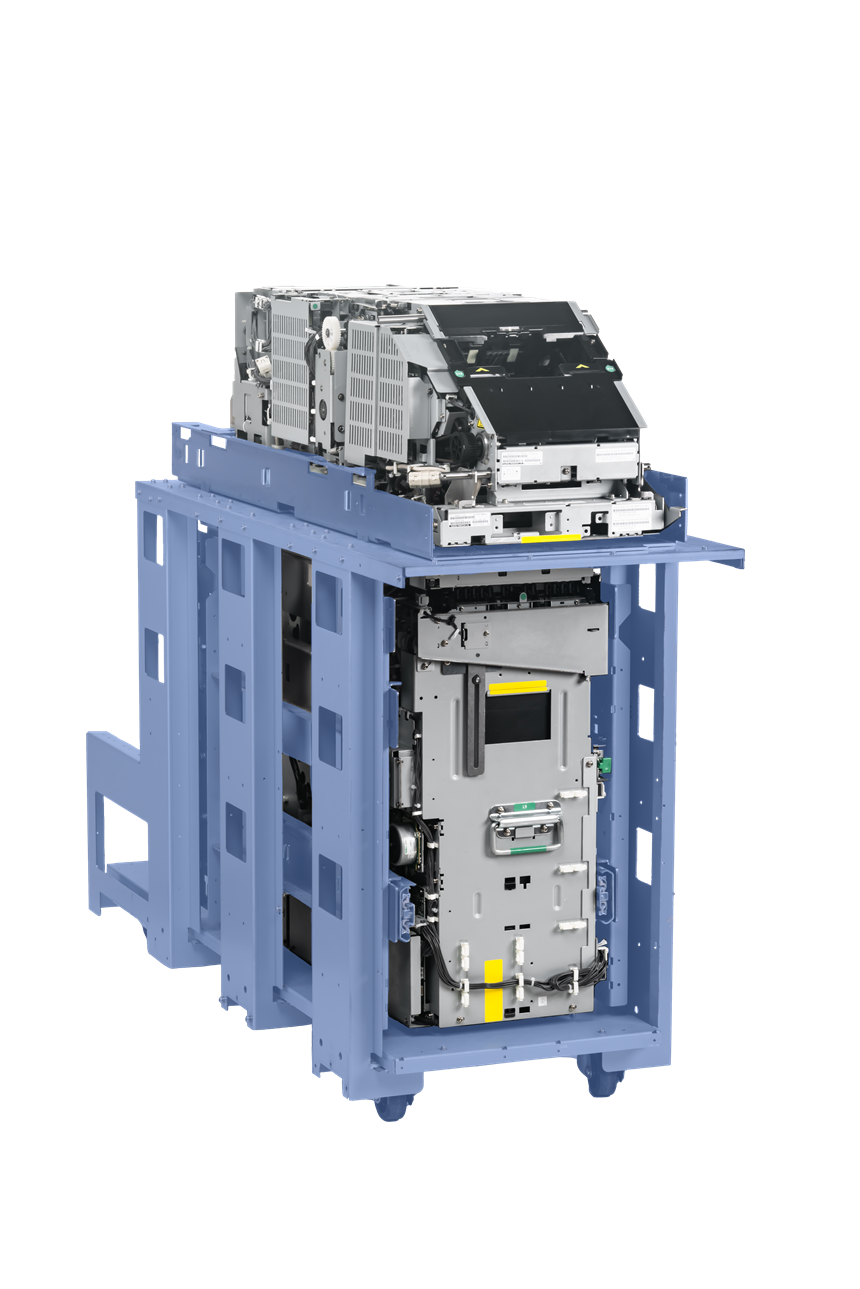

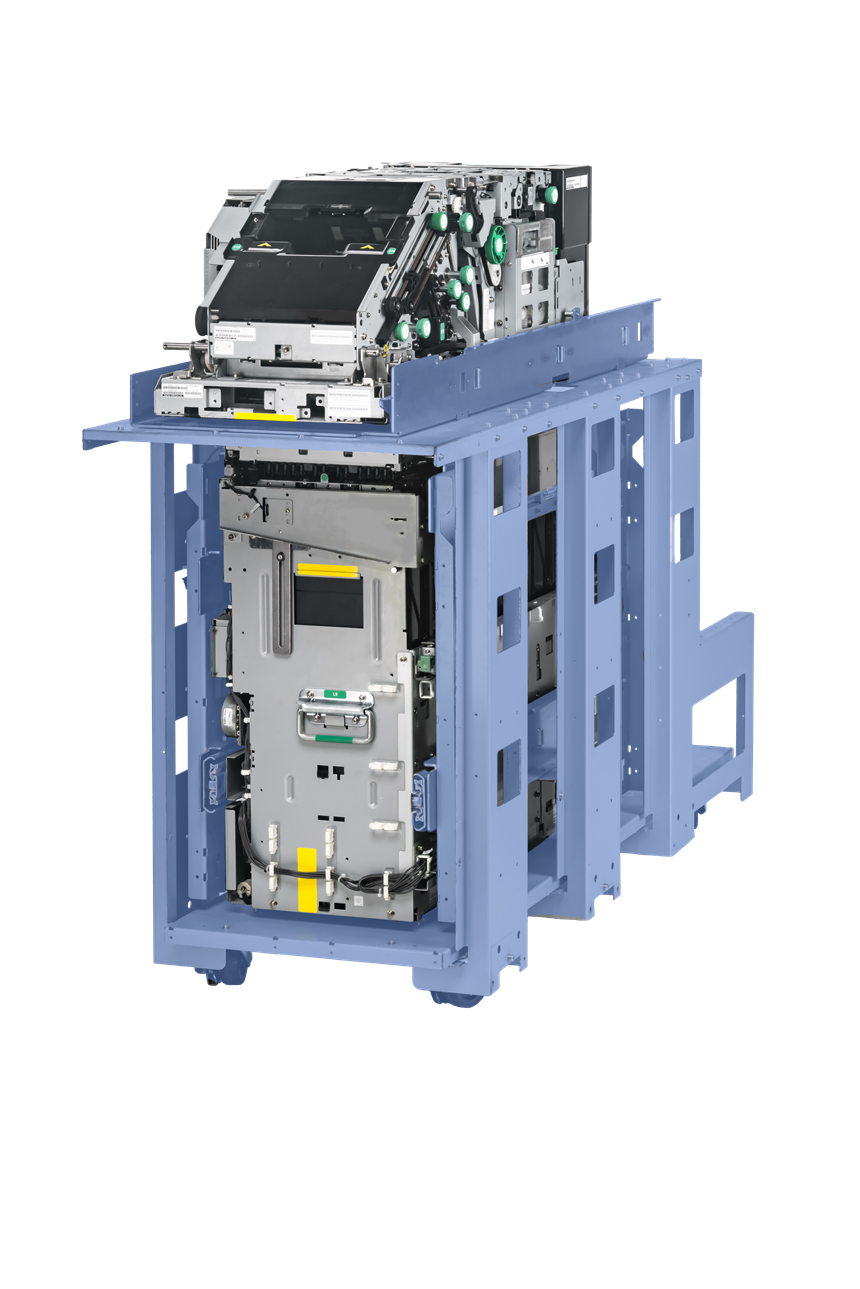

* The cradle and the slide rail (part colored in blue) are not included in the product.
Enhanced Features & Benefits
Flexibility
SRU can recycle up to 8 denominations. It has 11 possible cassette combinations.
Such flexibility empowers integrators to design the best possible solution for various markets or customer needs.
High Capacity
Capacity is also flexible, ranging from 7,300 to 18,300 banknotes.
So SRU can handle middle to large cash handling requirements.
Global Currency Support
SRU can support many kinds of currencies around the world with depositing and withdrawing variable width paper and polymer banknotes.
It also has functions such as tracking serial numbers and capturing image of banknotes.
Security
The modular design of SRU allows integrators and solution providers to offer split vault design to permit only authorized personnel access to certain areas of recycler, protecting cash ownership in each area.
It also can be integrated to safes which meet UL and CEN regulations.
In addition, the latest encryption technology prevents hacking attacks.
Monitoring & preventive maintenance
SRU constantly monitors and collects valuable performance information that is essential diagnostic and preventative maintenance to significantly increase uptime and lower cost of ownership.
An optional function provides advice on appropriate maintenance points as prevention by utilizing collected log data.
High speed
At 10 banknotes/second, SRU will be able to support the most demanding cash environments.
Use Case
Automated cash management solutions utilizing SRU can be used in financial, retail, gaming and hospitality where large amounts of money are processed.
Specifications
Upper module: 300mm x 276mm x 789mm
Lower module: 300mm x 555mm x 628 - 1053mm
*Depends on the configuration
Max. 85mm x 174mm
Min. 60mm x 120mm
10 notes / second
Max. 300 notes

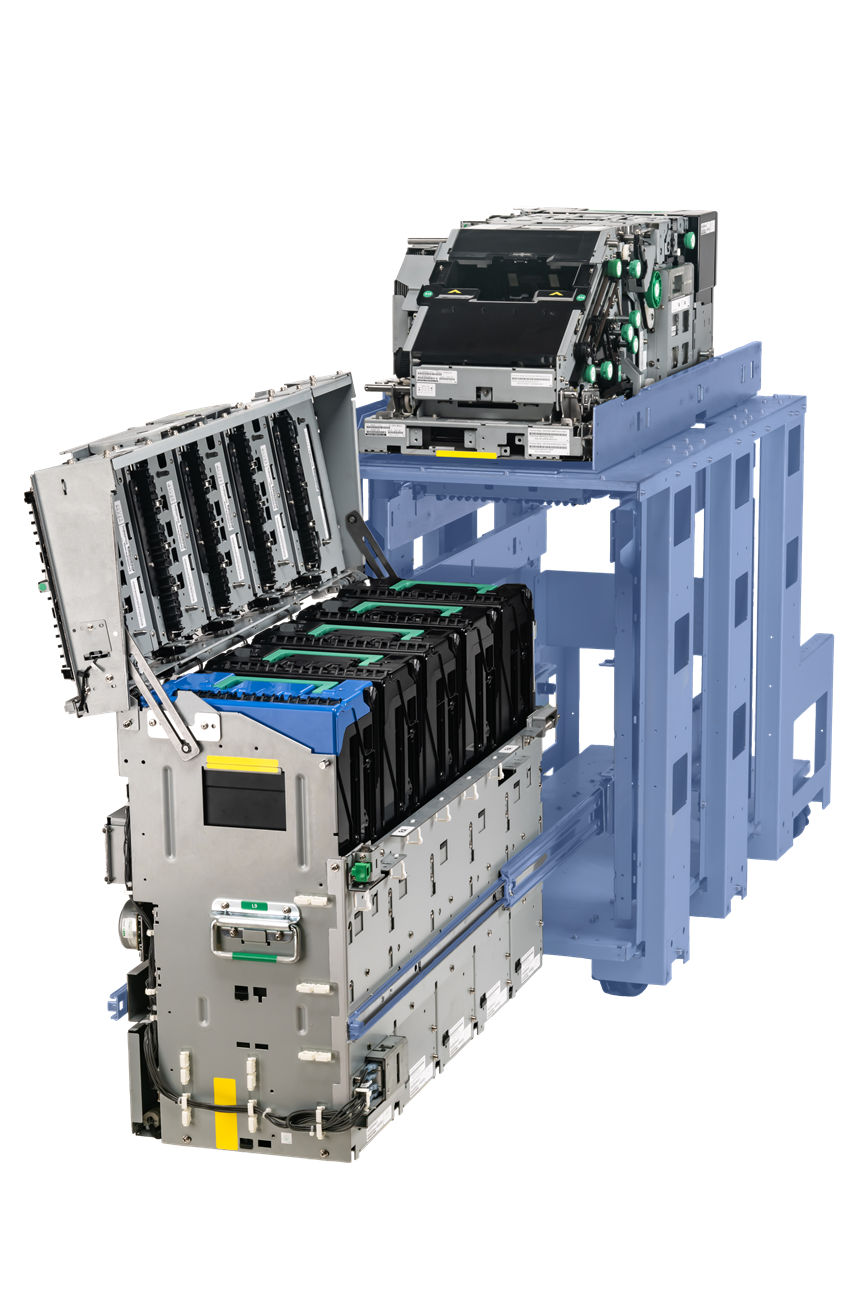

Three types of cassettes available (recycle cassette, deposit cassette, and split cassette)
Min: recycle cassette x2 + deposit cassette x1
Max: split cassette x4 + deposit cassette x1
Up to 8 denominations recycle
*The number of banknotes is calculated on the thickness of newly issued banknote(0.11mm).
Recycle cassette: Max. 3,000 new banknotes (Inner area: 330mm)
Deposit cassette: Max. 3,300 new banknotes (Inner area: 363mm)
Split cassette: Upper + Lower: Max. 700 + 1,300 new banknotes (Inner area: 77mm + 143mm)
Total: Total capacity depends on the cassette configuration.
In case of recycle cassette x4 + deposit cassette x1, the total capacity is Max. 15,300 banknotes.
Front and Rear
DC + 24V (+10%, -10%)
19.5A (In case of recycle cassette x4 + deposit cassette x1. Depends on the cassette configuration.)
In operation: 5 - 50°C
In operation: 5 - 80% RH
Note 1 : Above specifications may be changed without prior notice.
Note 2 : Maximum capacity depends on the size and the condition of currency.
